¶ Using JAVAD DPOS with JAVAD Mobile Tools
- Create project, connect to receiver and Download jps file from receiver to the project.
- Select Process item (either from home screen item or from drawer left menu)
- List of files in project appears.
- Click button on left of file item to be process. Action menu appears.
- Select Process DPOS menu item.

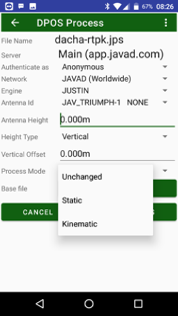

- Process DPOS dialog appears.
- There you can Network and Engine. JMT had analyzed the file, read antenna data and position and tried to select best Network. You can change it with this dialog.
- Also user can authorize to DPOS server or process file as Anonymous. Authorized process results will be stored on DPOS server also. User can see/download results from server during several days. Anonymous process results will not be saved on server.
- Set antenna type and height, select process mode.
- Press Send to DPOS button. Process starts.

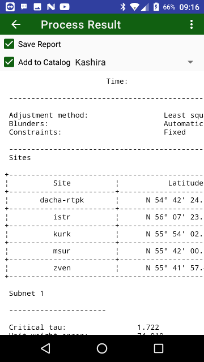

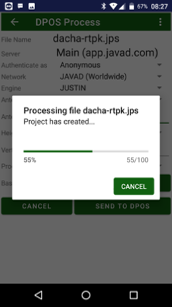

- JMT displays process. Then process is over, result dialog appears.
- If everything is ok, JMT extracts coordinates and Add to Catalog check box appears.
- Set the checkbox to save result processed point to selected catalog
- Further you can see it in Catalog
